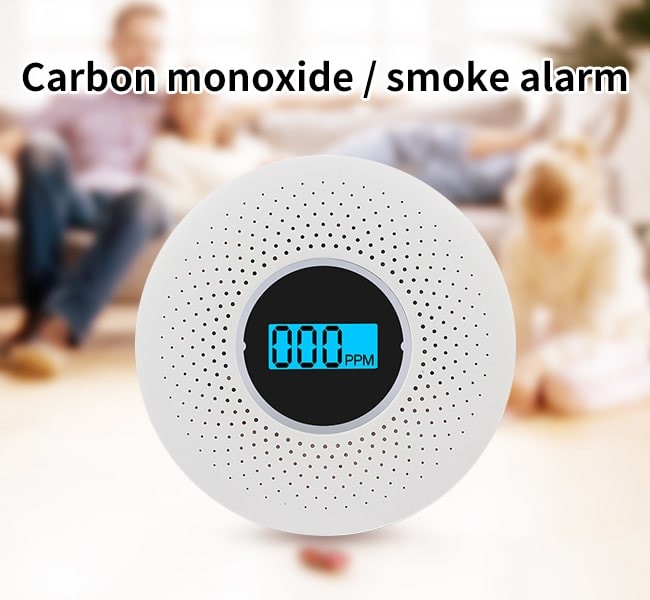

Combination Smoke And Carbon Monoxide Detector With Display Smoke
CO Alarm Detector
Combination smoke detector and carbon monoxide detector can detect
the threat of these two gases.
carbon monoxide detector alarm using high accurate electrochemical
sensor, alerts you to carbon monoxide danger.
photoelectric sensor detects smoke, smoke detector while minimizing
false alarms.
smoke co detector operated unit installs quickly and easily without
an electrician at home or bedroom.
lcd display concentration ppm, real-time monitoring to protect your
safety
Sepcification
| Product name | Combination Smoke And Carbon Monoxide Detector With Display |
Sensor | Electrochemical carbon monoxide sensor and Infrared photoelectric
sensor |
| Battery | 3*1.5V AA battery |
| Carbon monoxide sensor detect concentration | 000-999PPM |
Temperature | 0℃~50℃ |
Humidity | 10-95% |
| Smokesensor sensitive | 0.1%db/m-9.9%db/m |
| Operation Current | <10uA (standby); <70mA (alarm) |
| Alarm Sensitivity | 0.09 - 0.17 dB/m |
| Certification | UL217&UL2034 |
Installation Instructions
1. FIRST START
Insert 3 pieces 1.5VAA battery to the detector, the buzzer will
make a sound “di",the detector starting preheating,It will display
2 minutes counting when the detector is in starting -up.
2. BUTTON
Press TEST/RESET button,LCD display “0” ppm, LED flickering and the
detector will sound continuousalarm .
3. PEAK RECORD
Long press TEST /RESET button for more than 10 seconds, check alarm
concentration, pressTEST /RESET button again for clean up.
4. INDICATION LIGHT
Under the normal standby situation, the green light flashes one
time at every 68seconds.
5. LOW BATTERY WARNING
When the battery capacity islow, the redlight flashesone time at
every 20seconds and the LCD display “Lb".
6. ALARM
When the unit detect the carbon monoxide gas concentrations more
than 100PPM, it will alarming, and the buzzer will make sound “di”
four times at every 5seconds, the redlight flashes, and continue
alarm. please immediately turn off the valve,open the windows and
doors, then call your emergency service .If there isafire, when the
unit detect the smoke concentration over than 0.1%db/m, it will
alarming, the blue light flash rapidly and the buzzer continue
alarm .
7. ALARMPAUSE(Hushmode)
Silence your detector by immediately pressing the test button when
non-emergency, causes nuisancealarms. The LED circle flashing to
remind you that the detector has been silenced.LED light flash once
every 10 seconds that alarm had entered the
silentmode(insilentmode, press the button, the buzzeralarm ming,
atthesametime, the redlight cycle flashmuteoff). The alarm will
automatically reset after 10 minutes.
Notice
1. The detector is easy to be effected by the sharppounding and
shock in transit or installation ,leadto not work.
2. This is a carbon monoxide and smoke combodetector, can not
detect the combustible gas (such as liquefied petroleum gas,natural
gas, methane,etc.
3. Scheduled maintenance: surface cleaning permonth, specialist
inspection per half year.
4. Do not use the detergent to clean the detector, this will damage
the detector.
5. Do not spray any sprays such as air freshener, hairspray, etc.
6. This product is only used to reduce the accident, can not make
sure everytime. Except use ourdetector in right way, please also
pay more attention in your daily life and strengthen safety and
security conciousness.
