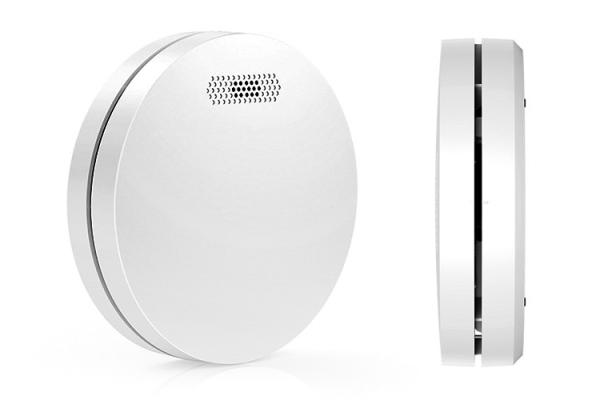

Smoke Alarm Detector Battery Powered Small Size Carbon Zinc Battery
About this item
1. Easy to install: The diameter of this smoke detector is very small, so it can be
easily installed anywhere inconspicuously; it can be easily
installed on any wall or ceiling with the included screws and
anchors.
2. Guaranteed quality: The quality is guaranteed. The product has passed TUV
certification, CE certification, 10-year non-replaceable lithium
battery or 3-year replaceable alkaline zinc battery
3. Convenience and intelligence: Continuously checks the battery status automatically
4. Super volume: After rigorous testing by engineers, the volume within three
meters is greater than 80 decibels, which is enough to attract
people’s attention
5.Quality after-sales:Provide one-year maintenance period and life-long after-sales
service
Product specifications
| Prouduct name | Smoke Alarm Detector Battery Powered Small Size Carbon Zinc Battery |
| Power | DC 2*1.5V AA Alkaline or Carbon Zinc battery |
| Battery Package | Alkaline (LR6,MN1500) or Carbon Zinc battery (R6P) |
| Operation Current | <10uA (standby); <70mA (alarm) |
| Alarm Volume | >85 dB(A) at 3 meters |
| Alarm Sensitivity | 0.09 - 0.17 dB/m |
| Low Battery | 2.6 ± 0.1 V |
| Silence Time | approx. 10 minutes |
| Color | White |
| Function | Protection |
Locations to Avoid
1. High-humidity areas such as kitchens, and bathrooms;
2. Next to air outlets, fans and central heating;
3. Dusty, dirty areas or areas with insects;
4. High-temperature and easily polluted places;
5. Places with difficult access, making it difficult to operate the
test function;
6. Within 1.5m from lamps;
7. Next to doors or windows;
8. In the top of rooms with sloping roofs, the corner of the room
or other dead-air spaces.
Mounting Alarms
1. Twist off the mounting bracket from the alarm.
2. Put the bracket on the installation position and mark the screw
holes on the ceiling or the wall.
3. Drill two mounting holes in the marked place by an electric
drill (The diameter of the drill hole is 5mm) and insert two
plastic anchor plugs by hammer.
4. Screw the mounting bracket to the ceiling or the wall (Refer to
figure 3).
5. Attach the alarm to the mounting bracket and turn clockwise to
lock the alarm
Available scenarios
Avoid danger
Packing List
1 × Photoelectric smoke alarm
1 × Mounting bracket
1 × Screw Kit
1 × User manual
FAQ
Q:How about the quality of Smoke Alarm?
A :We produce every product with good quality materials and fully
test three times before shippment. What is more, our quality
areapproved by CE RoHS SGS & FCC, IOS9001, BSCI.
Q: Can i have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed
samples are acceptable.
Q: What is the lead time?
A: Sample needs 1 working days, mass production needs 5-15 working
days depends on order quantity.
Q: Do you offer OEM service, like make our own package and logo
printing?
A: Yes, we support OEM service, including customizing boxes, manual
with your language and printing logo on the product etc.
Q: Can I put order with PayPal for a fast shipment?
A: Sure, we support both alibaba online orders and Paypal, T/T,
Western Union offline orders. Please contact us for details.
Q: How do you ship the goods and how long does it take arrive?
A:We usually ship by DHL(3-5days), UPS(4-6days), Fedex(4-6days),
TNT(4-6days), Air(7-10days), or by sea(25-30days)at your request.
